₹300,000.00

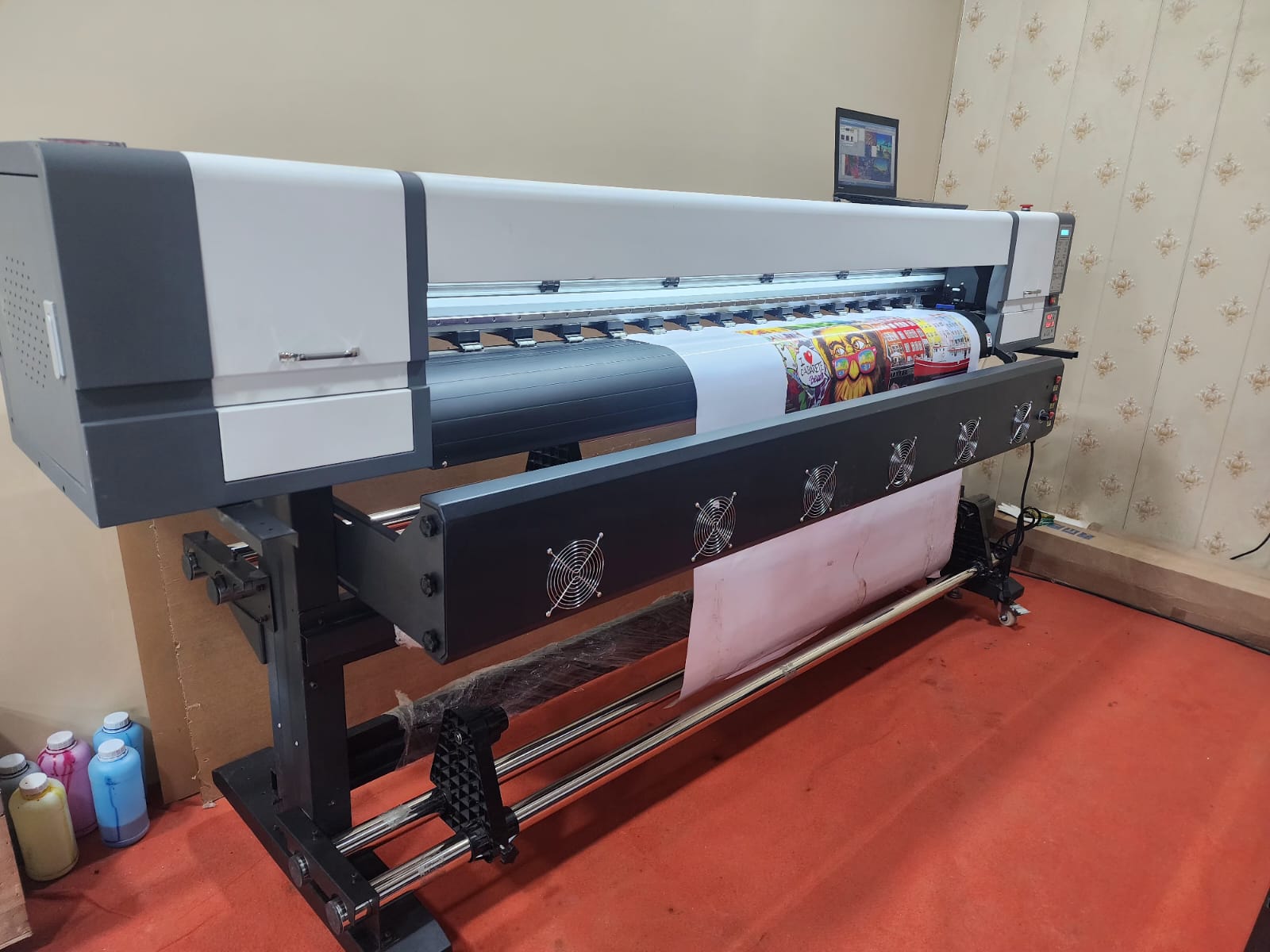

Maximize your sign-making profitability with a high-speed, high-precision solution that eliminates production bottlenecks. Equipped with a single revolutionary Epson i3200-E1 printhead, the Asia MSE1 delivers jaw-dropping 3200 DPI resolution at production speeds that will keep your shop ahead of the competition. Read on to discover how this eco-solvent powerhouse can transform your wide-format print business.
Engineered for demanding commercial environments, the Asia MSE1 Eco-Solvent Printer excels in producing vibrant, weather-resistant outdoor banners, durable vehicle wraps, high-fidelity backlit displays, and detailed indoor posters. Its advanced eco-solvent ink chemistry ensures excellent adhesion and UV resistance on a wide array of uncoated media, including vinyl, canvas, and flex banner. This versatility makes it the ultimate workhorse for sign shops, advertising agencies, and commercial print service providers seeking industrial-grade reliability and low operational costs.
| Specification Field | Technical Details |
|---|---|
| Model | Asia MSE1 |
| Printing Technology | MicroPiezo Inkjet Technology (PrecisionCore) |
| Printheads | 1 x Epson i3200-E1 PrecisionCore Printhead |
| Color Configuration | 4 Colors (CMYK) |
| Ink Type | Premium Eco-Solvent Ink |
| Maximum Printing Width | 1600 mm (63 inches) |
| Maximum Resolution | Up to 3200 DPI (Variable Droplet Technology) |
| Print Speed | Draft Mode: 22 m²/h | Production Mode: 15 m²/h | High-Resolution Mode: 11 m²/h |
| Control System | Industrial Hoson Board Control System with Network Interface |
| Ink Supply System | Continuous Ink Supply System (CISS) with Large Capacity Sub-Tanks |
| Heating System | Intelligent 3-Stage Heating (Pre-heater, Platen/Print heater, Post-heater) |
| Cleaning System | Automatic Capping, Wiping, and Anti-clogging Purge System |
| Interface | Gigabit Ethernet (LAN) / High-Speed USB 3.0 |
| RIP Software | MainTop (Included) / PhotoPrint / Onyx (Optional Compatibility) |
| Power Supply | AC 220V – 240V, 50Hz / 60Hz |
| Power Consumption | Printing: 1500W | Dryers active: 2500W |
| Operating Temperature | 20°C to 28°C (68°F to 82.4°F) |
| Operating Humidity | 40% to 65% RH (Non-condensing) |
| Machine Dimensions | 2650 mm x 720 mm x 1350 mm |
| Machine Weight | 210 kg |
| Package Weight | 250 kg |
| Media Take-up System | Automatic Tension-Controlled Roll-to-Roll Take-up System |
| Media Feeding System | Multi-point Intelligent Pinch Roller Feeding System |
| External Drying System | Segmented Infrared Heating & Cooling Fan Array |
| Media Thickness Compatibility | 1.5 mm to 8.0 mm (Adjustable Printhead Carriage Height) |
| Supported Media Types | Flex Banner, Vinyl Sticker, One-Way Vision, Canvas, Backlit Film, Synthetic PP Paper |
At MSSign, we ensure that your printers, machines, and accessories are delivered safely and on time. Orders are carefully packed to prevent any transit damage, and shipped through reliable logistics partners across India. Delivery timelines may vary depending on product type, stock availability, and destination, but we strive to dispatch most orders within 3–7 business days.
For larger machines and equipment, specialized handling and transport arrangements are made to guarantee secure delivery. Customers will receive tracking details once the order is dispatched, so you can monitor your shipment until it reaches your doorstep.
We also provide assisted installation and setup support for heavy machines.
Our technical team ensures safe unloading and proper placement at your site.
Every machine is tested before handover for performance assurance.
This way, you receive not just delivery, but a ready-to-use solution.
