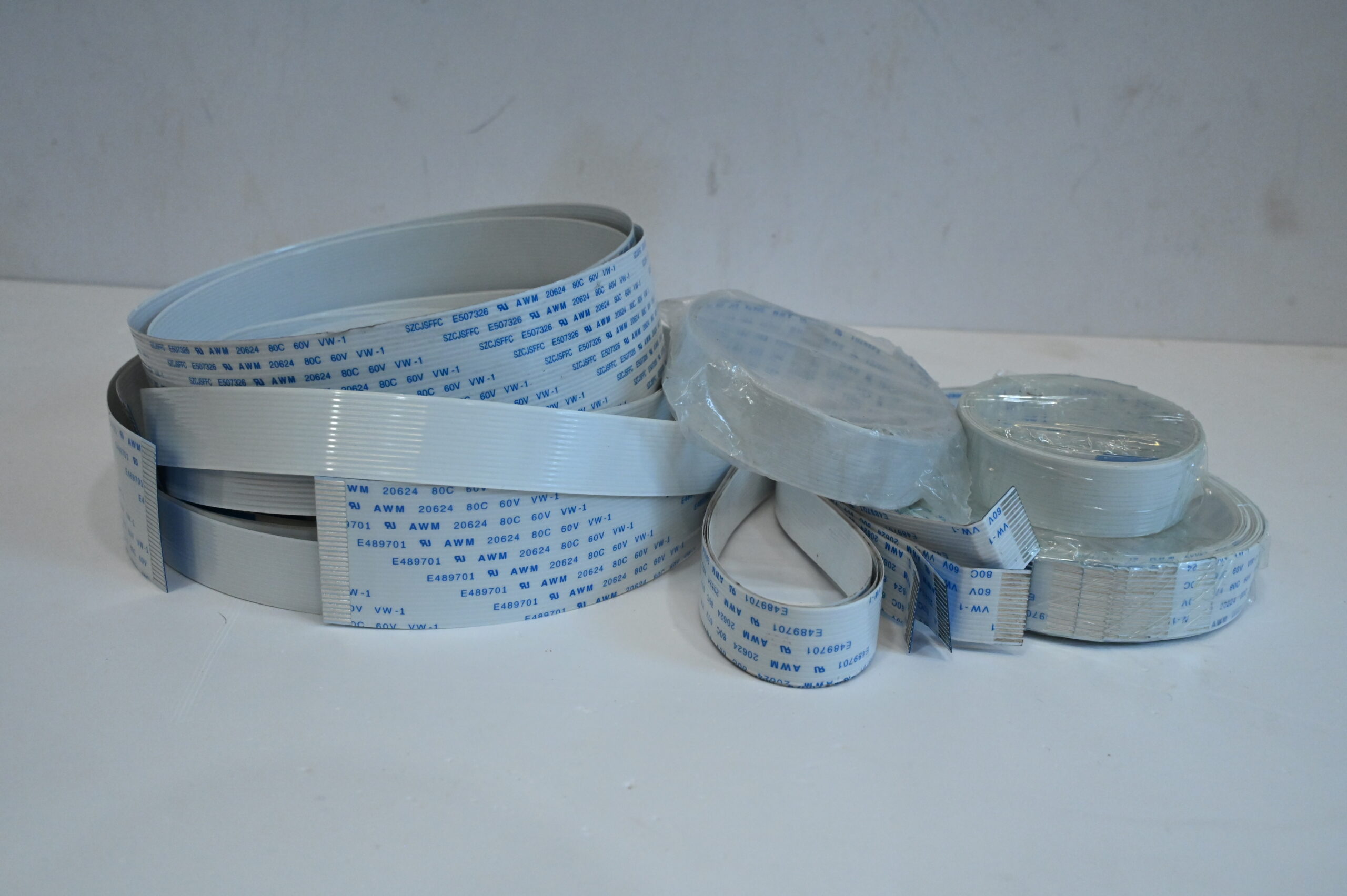

Printer FFC (Flat Flexible Cables), also known as ribbon cables, are thin, flexible electrical cables used inside printers to transmit data and signals between internal components. These cables are essential for the smooth functioning of modern printers, especially in DTF, eco-solvent, and UV printing machines.
Function in Printers
FFC cables act as the communication link between different parts of the printer:
- Transfer print data from the motherboard to the printhead
- Connect carriage board with the control system
- Enable communication between sensors, encoders, and control units
👉 Without these cables, the printer cannot operate or produce accurate prints.
Key Features
- Flat and flexible design for easy movement inside the printer
- High-speed data transmission for precise printing
- Compact and lightweight, ideal for tight spaces
- Heat resistant and durable (commonly marked AWM 20624, 80°C, 60V)
- Available in different pin configurations (20, 30, 40, 50, 60 pin)
Applications
Printer FFC cables are widely used in:
- XP600 printhead systems
- I3200 printhead systems
- Carriage board connections
- Encoder and sensor wiring
- Industrial and commercial printing machines
Types of Printer FFC Cables
- Same-side contact cables (Type A)
- Opposite-side contact cables (Type B)
- Different lengths and pitches (0.5 mm, 1 mm, etc.)
Handling & Precautions
- Handle with care – cables are delicate
- Avoid sharp bending or pulling
- Ensure correct insertion direction
- Match pin count and length before installation
Improper use can lead to:
- Print errors
- Missing colors
- Printhead failure
Simple Explanation
FFC Cable = Signal carrier inside the printer
It connects the brain (motherboard) to the working parts (printhead, sensors)
